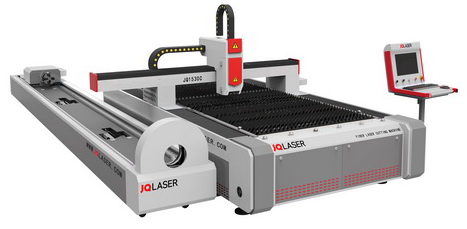

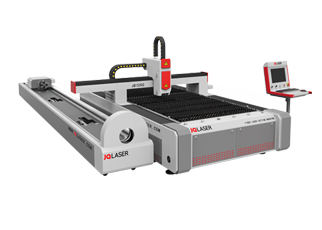

JQ 1530C
JQ-1530C is a multi-functional fiber laser cutting machine developed by Jinqiang Laser for the sheet metal processing industry and obtained the national invention patent. Mainly for the processing of sheet metal as a supplement to the processing of the main material, or occasionally the need for cutting the tube.
The machine adopts pneumatic full-stroke chuck, the maximum clamping range can reach 15-220mm round tube, high-precision chuck with high-precision servo deceleration system, and the cutting effect is excellent.
|
Processing area(L×W) |
3000mm×1500mm |
|
Pipe processing specification |
Φ15mm-φ220mm，L=6000mm；≤200mm） |
|
X axis track |
2350mm |
|
Y axis track |
3050mm |
|
Z axis track |
240mm |
|
X,Y axis positioning accuracy |
±0.03mm/m |
|
X,Y axis repeat positioning accuracy |
±0.02mm/m |
|
X，Y axis max speed |
100m/min |
|
X，Y axis max acceleration |
1.2G |
|
Max.turning speed |
100rpm |
|
Max.load of worktable |
900Kg |
|
Tailings length |
≥90mm |
|
Voltage/Power |
380V/50HZ / 17KW |
|
Dimension(L×W×H) |
7600mm×3500mm×1700mm |
