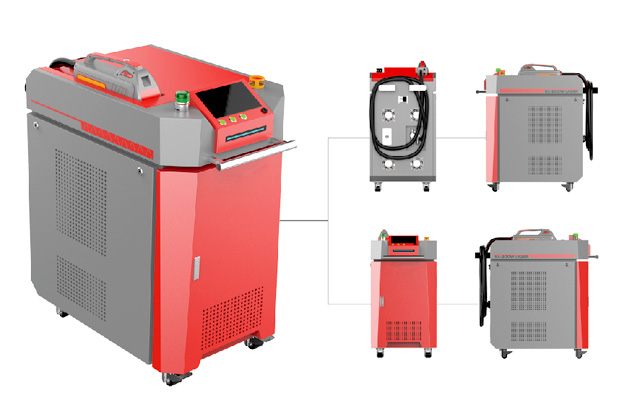

Laser Rust Cleaning machine



Technical advantages :

Laser cleaning is an application technique in which a laser beam is focused and shaped by an optical system, and a high-energy laser beam is scanned and irradiated onto a surface to be cleaned to remove or peel off the surface deposit, and has green pollution-free, non-abrasive, non-contact. It has no thermal effects and is suitable for cleaning various materials such as various materials.

In addition, the laser can be transmitted through the optical fiber, and cooperates with the robot and the robot to realize automation, convenient remote operation, cleaning of parts that are difficult to reach by conventional methods, high cleaning efficiency and time saving.

Application range :

Metal products surface rust removal, surface paint removal, surface decreasing, surface deplating, coating, surface oxide removal, welding surface / spray surface pretreatment, stone surface dust and attachment removal, rubber mold residue cleaning, etc.

Model NX-200 NX-300 NX-500 NX-1000
Laser Power(W) 200 300 500 1000
Laser wave range(nm) 1064
(mm) 50-100 50-100 50-150 50-150
(mm) <0.8 <1 <1 <1
  DPL DPL DPL
  QCW
(kHz) 10-30,20kHz 20-50

  5m 5-20m 5-20m 20m
  2KW 3KW 8KW 10KW
Power supply

AC220V (50/60Hz)

AC220V (50/60Hz)

AC380V(50/60Hz)

AC380V(50/60Hz)

  3L/min
Working Temperature 5–40℃
  100-400KG
Humidity <90%
